HOTStars™ Passageway Mat- 20" x 48"

HOTStars™ Passageway Mat- 20" x 48"

Regular price $345.52 CAD
Regular price Sale price $345.52 CAD
Sale Sold out
Shipping calculated at checkout.

SKU:HS 50-120













Clear your narrow walkways without shoveling. The HOTStars™ Passageway Mat (20" x 48") melts up to 2 inches of snow per hour on pathways to hot tubs, BBQ areas, sheds, and side entrances—anywhere you need a safe, ice-free path but don't have room for wider mats.

Plug it into any standard 120V outlet when snow starts. The rapid-heating membrane technology reaches 39.2°F to 44.6°F (4-7°C) above ambient temperature, clearing snow on contact while using less electricity than traditional wire-based heating mats.

Best for:

- Narrow pathways (20" width fits tight spaces)

- Hot tub and pool access routes

- Side entrances and walkways to detached garages

- BBQ areas and backyard sheds

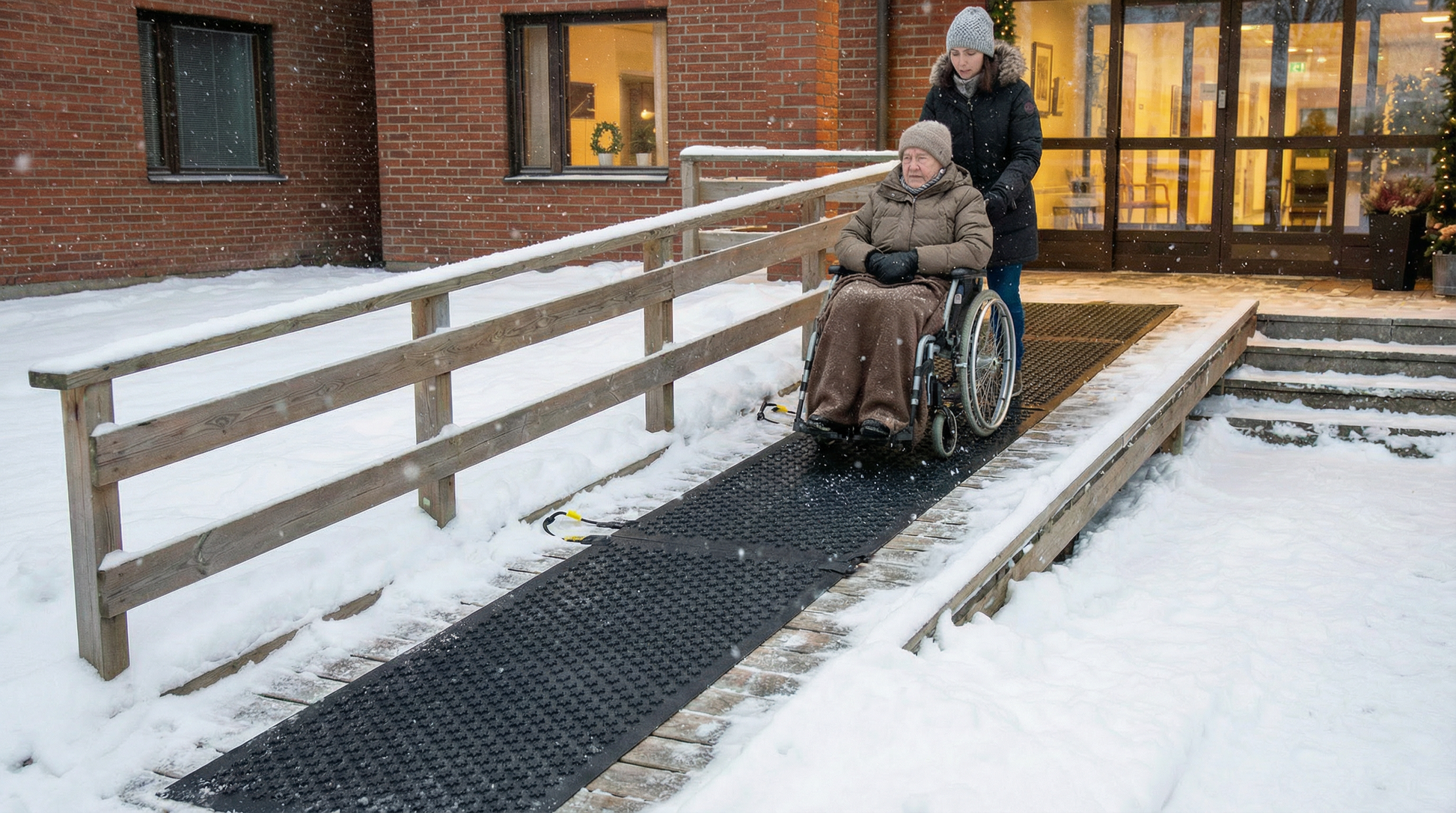

- Wheelchair ramps and accessibility routes

Key specs:

- Melts 2 inches (5 cm) of snow per hour

- Connects up to 6 mats on one 120V GFCI (15 amp)

- 45% lighter than wire-based mats (12.8 lbs)

- CSA certified (C22.2 No. 72-10) and UL 499:2014 approved

$345.52 CAD

What you need : One GFCI power unit per installation (sold separately). Optional: remote control, thermostat or snow sensor for automated operation.

1 GFCI required with every installation (Not included)
How many GFCIs do I need?  click here

Certification

TÜV Rheinland CU 72503155 0001 Approved in both Canada and United States (verify certification).

Meets and exceeds the requirements of Canadian Standards Association CSA C22.2 No. 72-10 (R2019)

Meets and exceeds the requirements of Underwriters Laboratories UL 499:2014 R5.23



Mat Specifications

Mat specifications (unpackaged)
Weight: 12.8 lbs. / 5.8 kgs
Size: 20 x 48 in. / 50 x 120 cm
Thickness: 0.4 in. / 10 mm
Power: 120V / 240 V / 240 W
Amperage: 2.1 (120V) – 1.1 (240V)
Maximum number of interconnectable mats on 1 GFCI
6 pcs (120V) or 12 pcs (240V)

Voltage Options
View full details
  • Membrane Technology

    HOTStars uses new rapid heating membrane technology that's also energy efficient meaning lower electricity costs, safer than wire heating, zero radiation and zero noise.

  • Plugs into standard outlets

    You can plug them into any standard 120V, 230V or 240V outlet. Just turn on and the mats will heat between 7 – 10 degrees Celsius and melt up to 2 inches of snow per hour. Fast enough to keep your space clear of snow and ice throughout the duration of winter!

  • Close-up of HOTStars™ Walkway XL Mat 40" x 59" showing textured surface and grommet corner for secure placement. Ideal for heated walkway mat systems.

    Non-Slip and Lighter Weight

    The mats are specially designed to extrude upwards gripping into the soles to improve grip and to enhance safety and security. Additionally the weight has been significantly reduced by 45% making it easier to transport and install!

  • Membrane Heating Technology (HOTstars)

    Superior Performance & Efficiency:

    • Wider heat distribution – Membrane technology spreads heat evenly across the entire mat surface with no cold spots, unlike wire systems that create concentrated heating lines
    • 45% lighter weight – Significantly easier to handle during installation and store during off-season compared to bulky wire-based mats
    • Faster warm-up times – Rapid-heating membrane reaches operating temperature quicker, melting snow on contact more efficiently
    • Even heat coverage – Eliminates the hot spots and gaps common with traditional wire spacing, providing consistent 7-10°C heating across the entire surface
    • Energy efficient – Uses less energy while delivering superior melting performance (up to 2 inches of snow per hour)

    Durability & Design Excellence:

    • 100% virgin SBR rubber construction – Completely waterproof and built for harsh Canadian winter conditions
    • UV protected – Superior weather resistance prevents degradation and cracking over multiple seasons
    • Distinctive star pattern – Provides enhanced anti-slip traction while being visually appealing
    • Stays in place – Design prevents constant shifting or need for repositioning throughout winter
    • High traffic durability – Excellent abrasion resistance ideal for busy walkways and entrances
  • Traditional Wire Heating Technology

    Performance Limitations:

    • Uneven heat distribution – Wire spacing creates alternating hot and cold strips, leaving gaps in snow melting coverage
    • Slower warm-up – Takes longer to reach operating temperature, delaying snow melting effectiveness
    • 45% heavier – Bulkier construction makes installation more difficult and seasonal storage cumbersome
    • Hotspot risks – Wires placed too close together can create overheating zones, while gaps leave cold spots
    • Less efficient energy use – Requires more power to achieve comparable melting results


    Design & Durability Drawbacks:

    • Wire breakage vulnerability – Individual heating wires can fail if damaged, creating dead zones in the mat
    • Limited flexibility – Wire systems are more rigid, making them harder to position and store
    • Uneven wear patterns – Concentrated heat along wire paths can lead to premature material degradation
    • Installation complexity – Heavier weight and rigid structure require more effort during setup
    • Aesthetic limitations – Functional design prioritizes wire placement over visual appeal and optimal traction

1 of 2
HOTStars™ Stair Treads - 11”x 38” outdoor heated mats installed on stone steps for ice melting and safe winter access.

Secure walkways and staircases

Safe Passage made Simple.

Ensure walkways and staircases are always safe to walk on with our heated snow melting mats. Customize different types and sizes of mats to suit your needs!

Set of three HOTStars™ Stair Treads 11”x 38” connected heated mats for snow and ice melting on stairs. Efficient winter safety solution.

Fully customizable for your property

How do they connect?

Each mat has a male and female connector. You can daisy chain same or different types of mats together with our water-proof connectors. It's a piece of cake!

Multiple HOTStars™ Outdoor Heated Floor Mats placed along a walkway and stairs, enhancing safety in snow-prone areas with efficient ice melting.

Custom extension cords avaiable

Mix and Match.

Our mats come in a variety of shapes and sizes as well as extension cords to suit your needs. Have questions? give us a call and we'll be glad to help you select the products you need for your layout.

Contact us for more information

Overview:

Why Membrane is Superior:

HOTstars membrane technology delivers the complete package—faster, more even heating that's 45% lighter, easier to install, more durable, and more attractive than traditional wire systems. It's engineered to simplify winter maintenance, not complicate it.


Performance specifications:

  • Melts up to 2 inches (5 cm) of snow per hour
  • Heats to (39.2 F to 44.6 F)  (4-7°C) above ambient temperature
  • Plug into standard 120V  or 240V outlets
  • Energy-efficient operation: lower electricity costs than wire-based systems
  • Zero radiation, zero noise operation


 Safety & Certifications

CSA certified to C22.2 No. 72-10 (R2019) standard—meets and exceeds requirements of Underwriter Laboratory of Canada and the US. TUV Rheinland conducts independent testing and inspection at the manufacturing facility to maintain certification. Each mat is triple-checked before shipment.

Requires GFCI (Ground Fault Circuit Interrupter) with every installation for electrical safety (sold separately).


Available Sizes & Configurations


Stair Treads (11" x 38"):
Designed for individual stair steps. Connect up to 16 mats on a single 120V GFCI (32 mats on 240V). Weighs 6.4 lbs per mat.

Doormats (24" x 40"):
Perfect for entrances and landings. Connect up to 6 mats on 120V (12 on 240V). Weighs 12.8 lbs.

Passageway Mats (20" x 48"):
Narrow design ideal for pathways to BBQs, sheds, or hot tubs. Connect up to 6 mats on 120V Weighs 12.8 lbs.

Walkway Mats (36" x 48"):
Large-format coverage for main walkways and wide stairs. Connect up to 4 mats on 120V (8 on 240V). Weighs 26.45 lbs.

XL Walkway Mats (40" x 59"):
Large-format coverage for main walkways and wide stairs. Connect up to 2 mats on 120V (5 on 240V). Weighs 36.4 lbs.

Daisy-chain connectivity:
Each mat has male and female waterproof connectors. Mix and match different mat sizes on the same GFCI power unit to create custom layouts for your property.


Material & durability:

Made from 100% virgin SBR rubber with UV protection. Completely waterproof with excellent anti-slip traction. Built for high-traffic areas with abrasion resistance comparable to automobile tires.

1 GFCI required with every installation (Not included)
How many GFCIs do I need?  click here



Frequently Asked Questions

F.A.Q.

How much does it cost to run HOTStars heated mats?

Operating cost averages approximately $1 CAD per day when mats are actively running. Actual costs vary based on local electricity rates, outdoor temperature, and how many mats you're operating. The membrane heating technology is more energy-efficient than traditional wire-based systems, consuming less power while providing faster, more even heating.

Can I leave HOTStars mats plugged in all winter?

Yes. HOTStars mats are designed for seasonal outdoor use and can remain plugged in throughout winter. The GFCI power unit includes a reset button (ON) and test button (OFF) that let you control operation without unplugging. For energy savings, turn mats on when snow is forecast and off during clear weather. Some users add timer switches or smart outlets for automated control.

The mats only need to be left on during the snowfall and/or for a period of time after the snowfall. Mats may be laid out just before first frost conditions and can be left powered on during periods whereby temperatures are below 5 degrees Celsius or its equivalent of 41 degrees Fahrenheit.

Can the mats be automatically controlled?

Yes. On/off options include: having an electrician hard wire the connection to the breaker , or thermostats, or simple automatic controllers that can turn your mat on and off depending on snowfall and temperatures. This type of controller regulates the turning on and off of the mat without ever having to unplug it from the outlet and can be hardwired into the circuit by any certified electrician.

How long does it take HOTStars mats to melt existing snow?

Performance depends on snow depth and outdoor temperature. Under typical Canadian winter conditions (around -3°C / 27°F), HOTStars mats completely melt and dry a 4-inch snow accumulation in approximately 2 hours. The mats heat to 4-7°C above ambient temperature and melt up to 2 inches of snow per hour. During active snowfall with continuously blowing snow, melting takes longer as new snow keeps accumulating.

How many years will the mats last?

The mats should last 4-6 years if maintained properly. Please, see the owner's manual, included with your purchase, for proper maintenance instructions.

How many HOTStars mats can I connect together?

Connection limits depend on mat size and voltage:

  • Stair Treads (11" x 38"):** Up to 16 mats on 120V / 32 mats on 240V
  • Doormats (24" x 40"):** Up to 6 mats on 120V / 12 mats on 240V
  • Passageway Mats (20" x 48"):** Up to 6 mats on 120V
  • Walkway Mats (36" x 48"):** Up to 4 mats on 120V / 8 mats on 240V
  • XL Walkway Mats (40" x 59"):** Up to 2 mats on 120V / 5 mats on 240V


All connections use a single 15-amp GFCI power unit. You can daisy-chain different mat sizes together on the same GFCI using the waterproof male/female connectors on each mat.

Can I cut or trim HOTStars mats to fit my space?

No. Mat sizes are pre-molded and cannot be altered. Cutting, trimming, or modifying a mat in any way immediately voids the manufacturer warranty and creates serious electrical safety hazards. Measure your application area carefully and verify all measurements twice before ordering. If standard sizes don't fit your space, contact KEMF to discuss custom mat configurations.

What surfaces work with HOTStars heated mats?

HOTStars mats work on concrete, asphalt, stone, wood decks, and even grass. The mats sit on top of existing surfaces—no installation or permanent modifications required. The anti-slip rubber bottom prevents shifting throughout winter. At season end, hose off any salt or sand residue, let mats dry completely, and store indoors to protect from summer UV exposure.

Do HOTStars mats work in extreme cold?

Yes. HOTStars mats function in extreme Canadian winter conditions. User reports confirm effective operation at temperatures as low as -14°F (-26°C) with 11+ inches of snow. The mats heat 4-7°C above ambient temperature, so they remain effective even during severe cold snaps. Performance is best when mats are turned on before snow accumulation begins.

What's the difference between HOTStars and wire-based heated mats?

HOTStars uses membrane heating technology instead of embedded heating wires. Key differences:

  • Weight: 45% lighter than wire-based mats, easier to install and store
  • Heating coverage:** Membrane provides wider, more even heat distribution across the entire mat surface
  • Warm-up time: Faster heat-up compared to wire systems
  • Energy efficiency: Lower electricity consumption for equivalent snow-melting performance
  • Safety: Zero radiation, zero noise operation; safer than wire heating
  • Durability: Membrane technology reduces failure points compared to wire systems

Do I need a GFCI with HOTStars mats?

Yes. A GFCI (Ground Fault Circuit Interrupter) power unit is required with every HOTStars installation for electrical safety. The GFCI is sold separately and is not included with mat purchases. One GFCI can power multiple mats up to the connection limits listed above. The GFCI shuts off power automatically if any electrical current begins leaking to ground, preventing shock hazards.

How do I store HOTStars mats in summer?

At the end of winter, hose off mats to remove salt and sand residue. Allow mats to dry completely. Store mats indoors in their original packaging or in a covered area away from direct sunlight. Proper storage protects the rubber from UV degradation and extends mat lifespan. Do not leave mats outdoors during summer months.

HOTStars How long is the warranty?

All mat products are backed with a two-year manufacturer's warranty.

Who Uses HOTStars Mats

Homeowners:

  • Eliminate daily shoveling and ice chipping
  • Reduce slip-and-fall liability for guests and delivery personnel
  • Protect landscaping from salt damage
  • Maintain safe access during Canadian winter storms

Businesses:

  • Keep customer entrances clear without constant maintenance
  • Reduce employee injury risk on walkways and loading docks
  • Avoid salt damage to concrete, landscaping, and building materials
  • Lower winter maintenance labor costs

Property Managers:

  • Scale snow management across multiple properties
  • Plug-and-play installation with no permanent modifications
  • Reduce tenant complaints and liability exposure
  • Seasonal storage between winter seasons

Accessibility Applications:

  • Ensure wheelchair ramps remain navigable during storms
  • Maintain accessible entrances for mobility-impaired residents
  • Eliminate ice hazards on accessible pathways
  • Meet accessibility compliance requirements year-round

Can you Park or Drive on the Mats?

Yes, HOTstars walkway and XL walkway models are considered driveway mats and are durable enough for cars, and SUVs to drive or park on. To ensure the longevity of the mats and the safety of the electrical system.

To keep your cables safe and ensure vehicles drive only on the mats, you should set up two parallel tracks. Note that while these mats are vehicle-rated, they cannot be used with studded tires, as these will damage the rubber surface.

How do they work?

HOTStars™ Customer Installations

How many GFCIs will I need?

To power on and off a mat you require a power unit (GFCI) which connects your mat to either a 120V or a 240V electrical outlet. You can connect up to 15 Amps on a single GFCI. If your connected Mats exceed 15 Amps you will have to split up the mats and add a second GFCI to plug in a separate outlet. Don't worry we will help guide you and explain everything. We'll ensure it'll work for your property!

Click here to learn more
